Paper Straw Machine

The company is located in Wenzhou, since 1998 we introduced the advanced technology from German, has more than 20 years of factory history. We specialize in producing all kinds of plastic zippers and related machines.We have dozens of new high-output plastic production lines, thousands of molds.

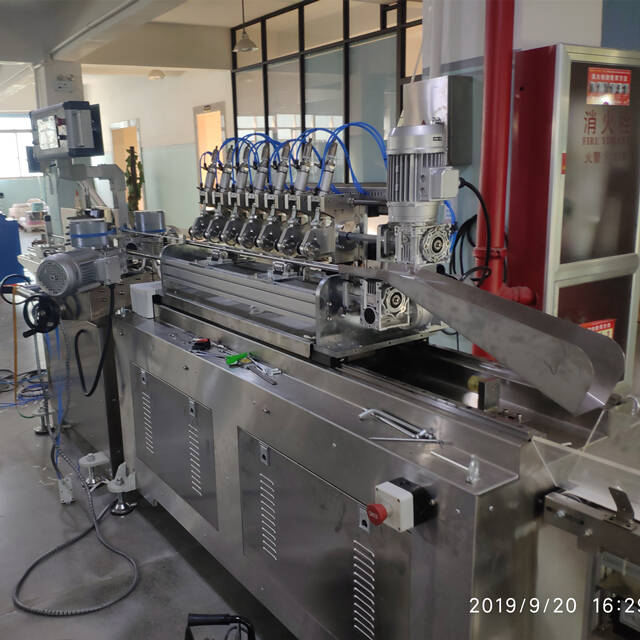

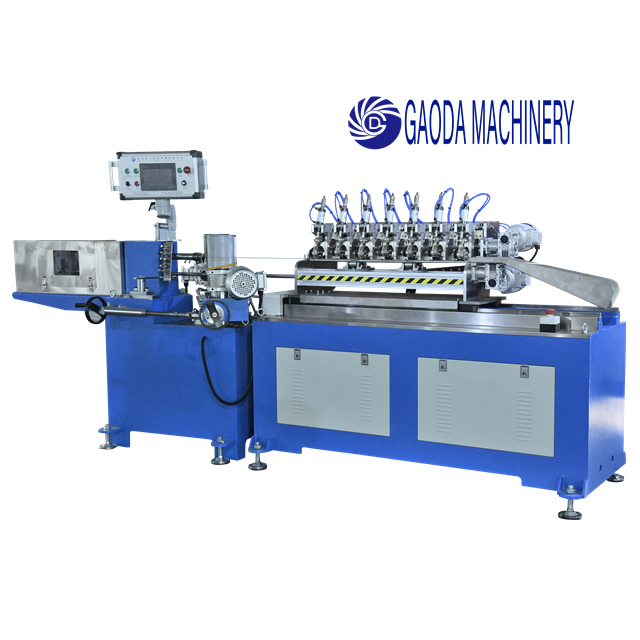

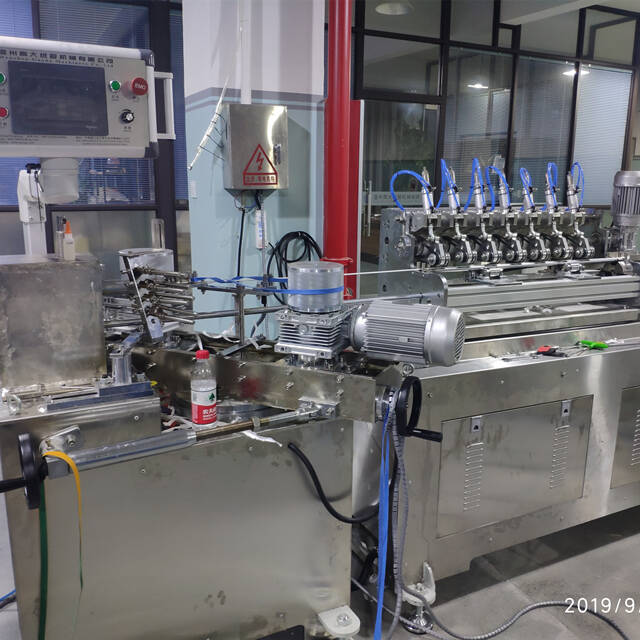

GDM5-2S 4mm Out Diameter Paper Straw Making Machine

Paper Straw Machine

Advantage :
1.Inner diameter: 3.3-7.3mm, out diameter 4.1-8mm;
2.7 cutting knife, better for making shorter and smaller diameter drinking straws;

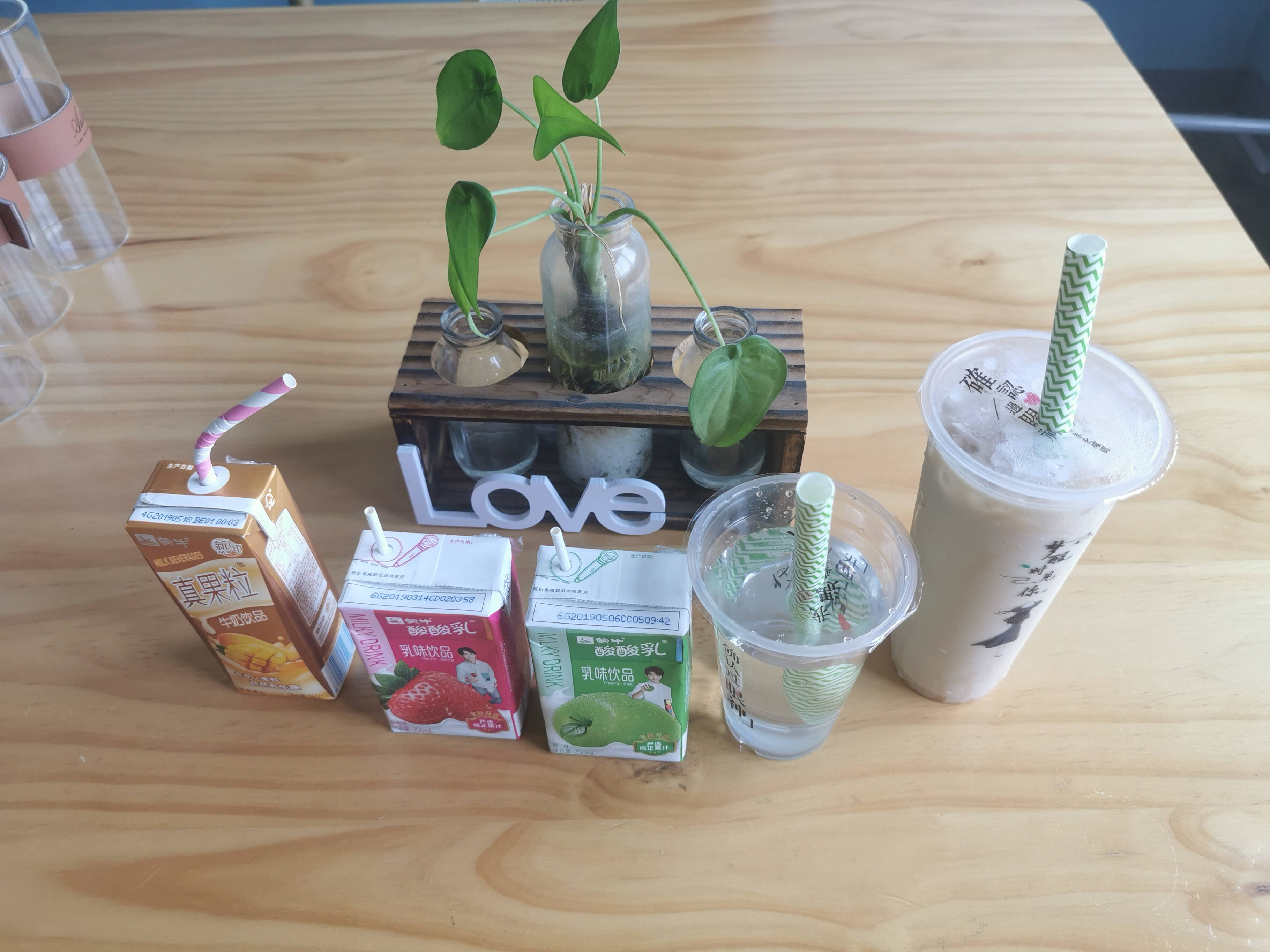

3.Smaller diameter drinking straws, are useful for milk/juice package and cocktail drinking, or coffee stirring bar;
4.Optional choice of glue heating function station;
5.The smaller diameter could be 45° sharp cutting by sharping cutting machine.

Online Inquiry Contact us

Advantage:

1.Inner diameter: 3.3-7.3mm, out diameter 4.1-8mm;

2.7 cutting knife, better for making shorter and smaller diameter drinking straws;

3.Smaller diameter drinking straws, are useful for milk/juice package and cocktail drinking, or coffee stirring bar;

4.Optional choice of glue heating function station;

5.The smaller diameter could be 45° sharp cutting by sharping cutting machine.

S.N

7 cutting knife

Cutting knife

7

How many straws per cutting

Max is 6

Max paper tube length

850mm

Stable speed

20-45m/min

4mm diameter, max speed 30m/min

When making smaller diameter, speed slow.

Straw length

120-500mm



Specification:

Technical Parameter

Paper layer

2~5 layers

Fixed length

Enbcoder

Inner diameter

OD: 4~8mm

Operator

0.5-1 staff

Thickness

0.3~1mm

Speed control

Servo motor

Speed

0~45m/min

Power supply

380V/ 3 phase/ 50Hz

Cutting length

120~850mm

Glue method

Three layer spray type

Way of Gluing

Single/double side

Weight

1400kg





Payment term and after-sale service

Term

Packing: Plastic film package or Wooden box(Optional, need pay)

FOB Price: Sea Freight cost & Insurance are paid by the buyer.

Payment: T/T; 30% down payment, the balance 70% to be paid before shipment.

Lead time: Ordinary model, 20-30 days after receiving the down payment.(to be postponed if meet legal holidays and special design, customize requirements like dust cover...... ).

Training & Service: We suggest that customers take a training for 3-5 days at our factory for installation and operation. How to change paper straw length and diameter, how to judge glue quantity and viscosity. Training at our factory is free.

If on-site installation and training, the buyer need pay round tickets cost(from Wenzhou to your factory and return Wenzhou from your factory),food and hotel. Whats more, salary for engineer USD100 per day.
