HNB Paper Tube Machine

HNB Paper Tube Machine

HNB Paper Tube Machine

Now, many tobacco(cigarette) companies will shift traditional cigarette to non combustion heated tobacco. New cigarette product like IQOS, small length. Gaoda Machinery improve our old model paper straw making machine into short length paper tube machine. Then tobacco company could fill filter and tobacco inside.What's more, the short paper tube could use on HNB.

Online Inquiry Contact us
GDZGJ-HNB:

Now, many tobacco(cigarette) companies will shift traditional cigarette to non combustion heated tobacco. New cigarette product like IQOS, small length. Gaoda Machinery improve our old model paper straw making machine into short length paper tube machine. Then tobacco company could fill filter and tobacco inside.What's more, the short paper tube could use on HNB.

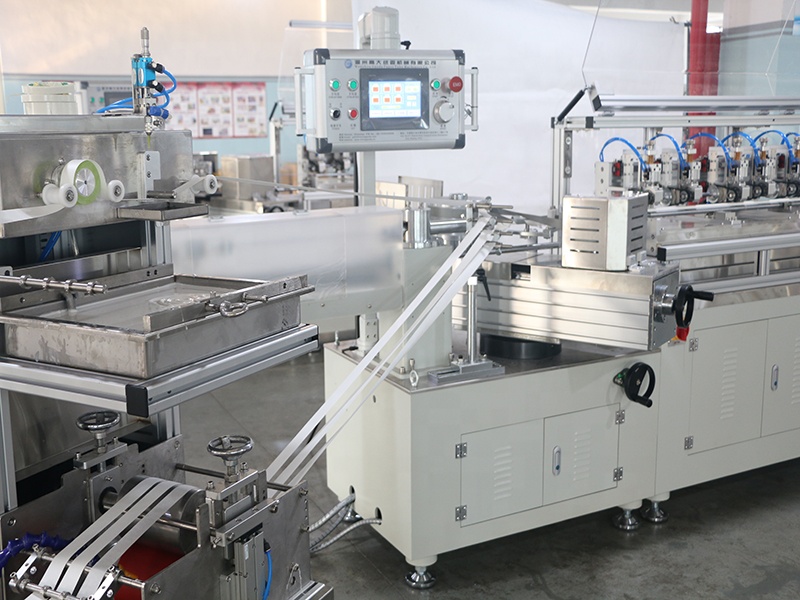

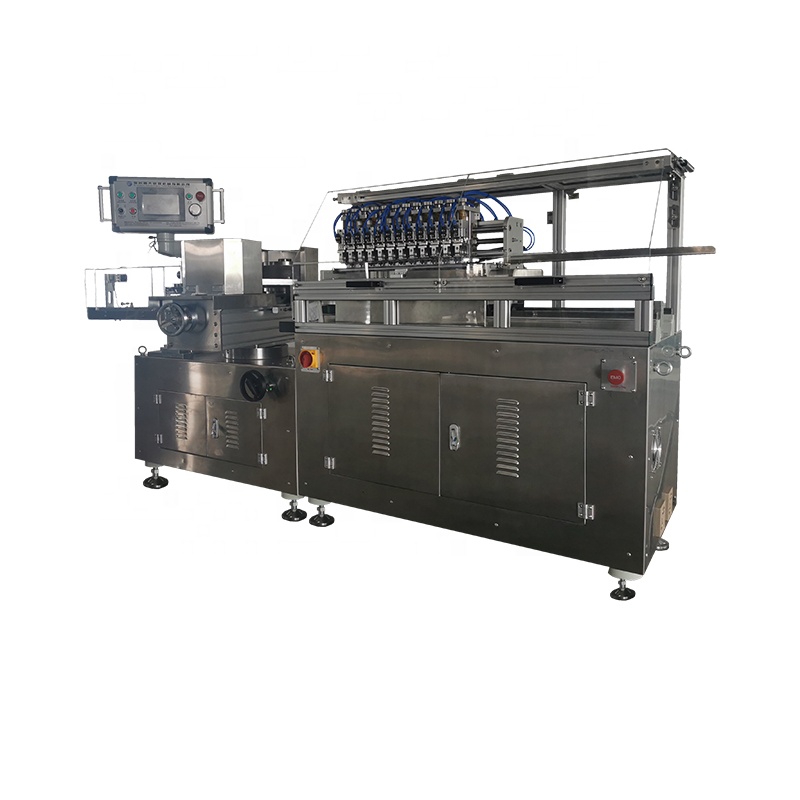

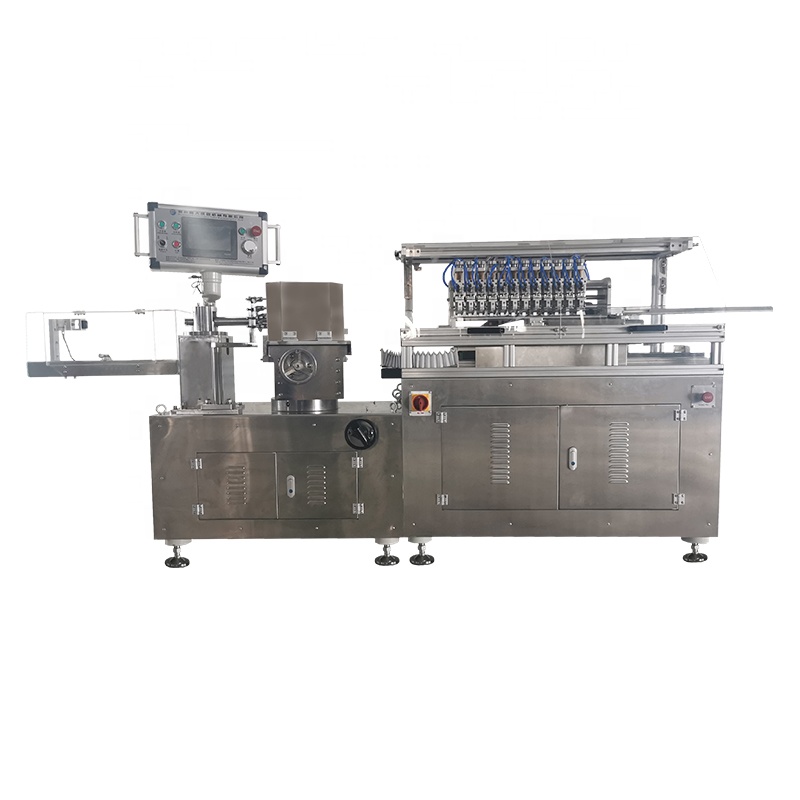

Total machine includes 6 parts
1) Paper roll hanging bracket, 3-4 layers, auto connecting/splicing, no stop working;
2) Glue station, stainless steel, glue auto feeding;
3) Winding and control mechanism;
4) Muti-cutting system, 12 cutting knives with dust & protecting cover;
5) Conveyor;
6) Collector.


Advantage of GDZGJ-HNB:

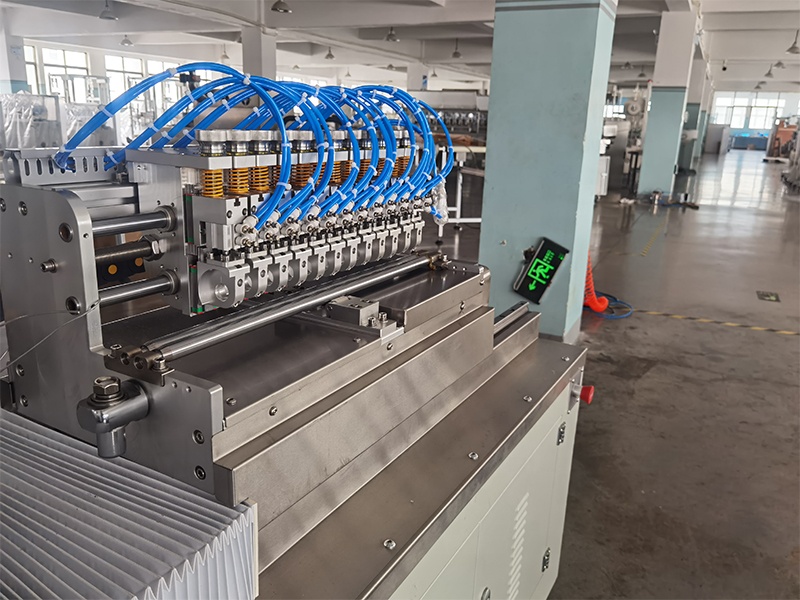

1) 12 cutting-knife system, new structure of cutting cylinder. Easier to adjust air cylinder up and down when making
different diameter paper tube.
2) 4 sets servo motor for spiraling rollers, cutting system moving left & right, supporting roller.
3) Auto paper roll connecting function hanging bracket, auto splicer, 3 layers. No need stop machine to connect old and
new paper rolls.
4) Auto feeding function glue station.
5) Auto lubrication grease feeding system for cutting system.

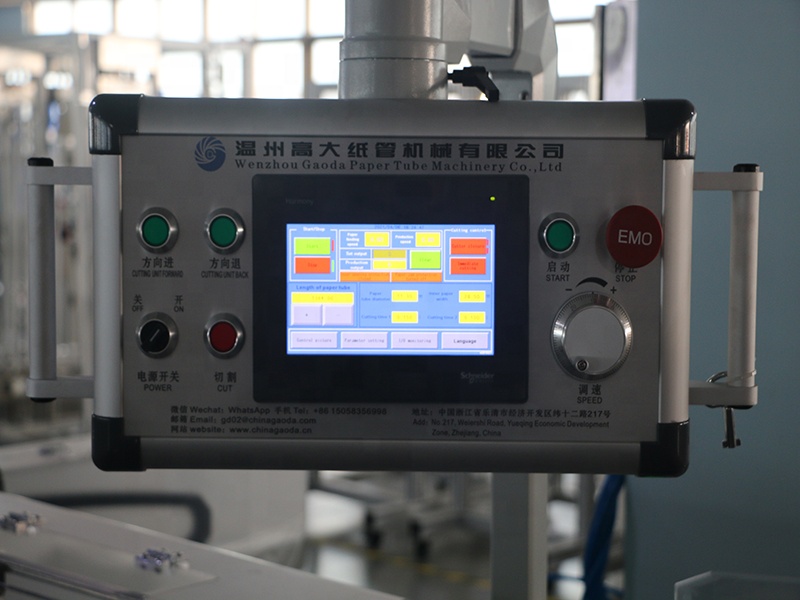

6) Main electric parts choose famous brand, Schneider. Like main servo motor, servo motor driver, frequency converter,touch screen.

Specification

Place of Origin
China
Zhejiang
Brand Name
GAODA
Condition
New
Video outgoing-inspection
Provided
Machinery Test Report
Provided
Marketing Type
New Product 2020
Layer of paper
3-4layers
Max.diameter
12mm
Min.inner.diameter
5mm
Max.thickness
0.3mm
Min.thickness
0.15mm
Min.lenght
35mm
Max.lenght(between 2 blades)
550mm
Output speed
3-45m/min
Cutting way
12 knives pneumatic
Glue method
Double side/single side
Core Components
PLC, Motor
Voltage
AC 380V 3phase
Power
6.5Kw
Weight
1350
Warranty
1 Year
Raw material
paper
Application
Used for paper straw production
Product Name
GDZGJ-HNB
