1. Adopts ceramic mesh roller to convey ink.
2. Magnetic powder brake and clutch control the feeding and rolling or discharging.
3. Each printing unit adopts 360-degree registering adjuster.
4. Drying group with infrared drying device.
5. The inking roller can depart from the machine and rotate at low speed in order to keep the ink from drying when its stops.

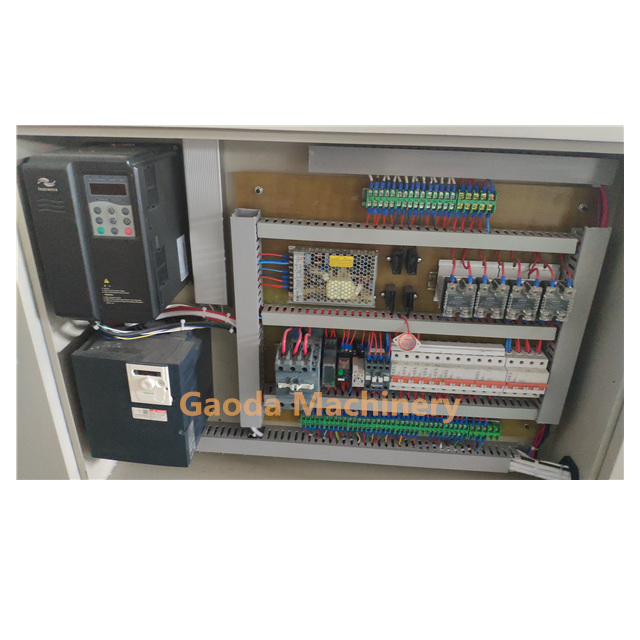

6. The main motor adopts stepless governor converter.

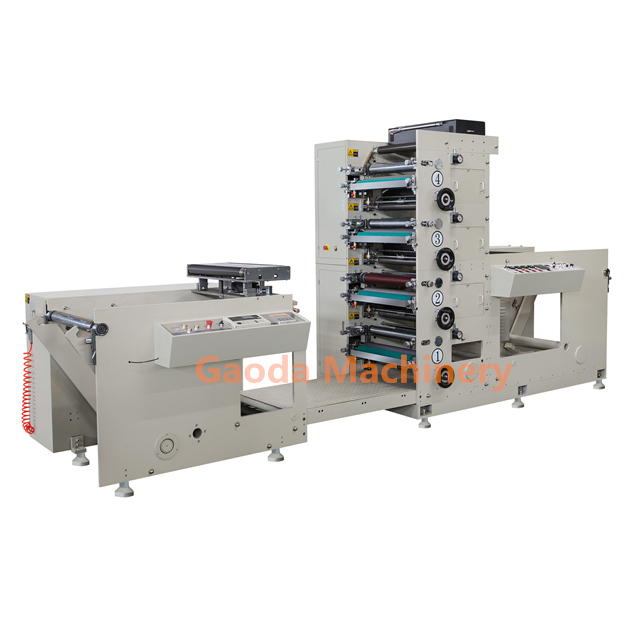

1. Feature
1. Adopts ceramic mesh roller to convey ink.
2. Magnetic powder brake and clutch control the feeding and rolling or discharging.
3. Each printing unit adopts 360-degree registering adjuster.
4. Drying group with infrared drying device.
5. The inking roller can depart from the machine and rotate at low speed in order to keep the ink from drying when its stops.
6. The main motor adopts stepless governor converter.
2. Specifiation Parameter
Main Technical Parameter
1
Max Feeding Width
1000mm
2
Printing Speed
80m/Min
3
Printable Color
4 Colors
4
Max Web Width
630mm
5
Max printing Width
620mm
6
Printing girth
180mm—720mm
7
Main Motor Power
5.5KW
8
Power Supply
380V 3PH 50Hz
9
Plate Thickness
1.7mm
10
Paste version tape thickness
0.38mm
11
The thickness of the substrate
180g-420g
12
Overprint precision
±0.12mm
13
Total Power
18KW
14
Machine dimension
2.8*1.6*2.4m
15
Machine weight
About 2900KGS
S.N
Data
3. Machine Construction

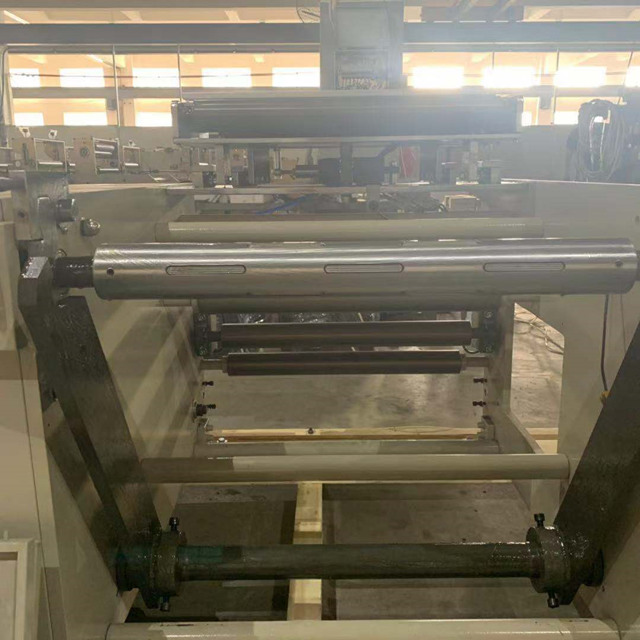

1)Unwinder unit: one set
Max Paper roller diameter 1000mm
One 3inch air swelling shaft (can change to 6 inch air swelling shaft)
Auto tension control system of unwinding and rewinding
One Magnetic powder brake.
With Fast inflating gun.

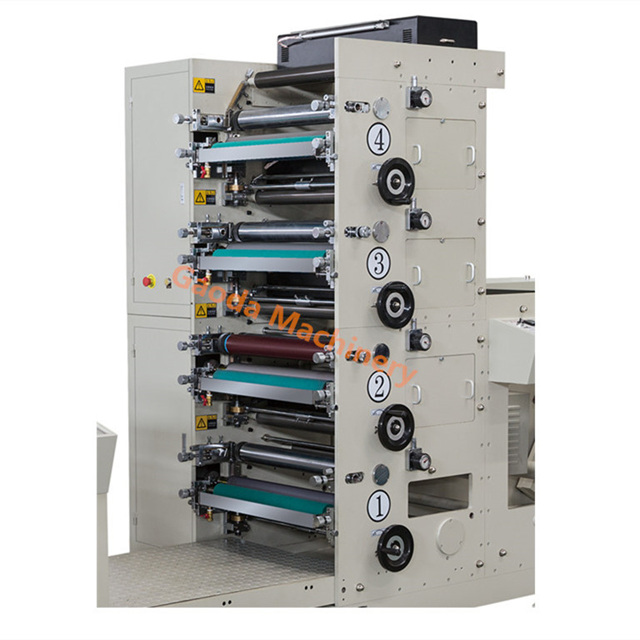

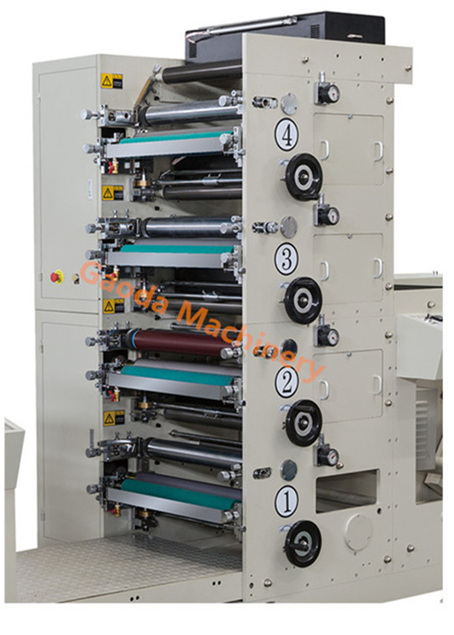

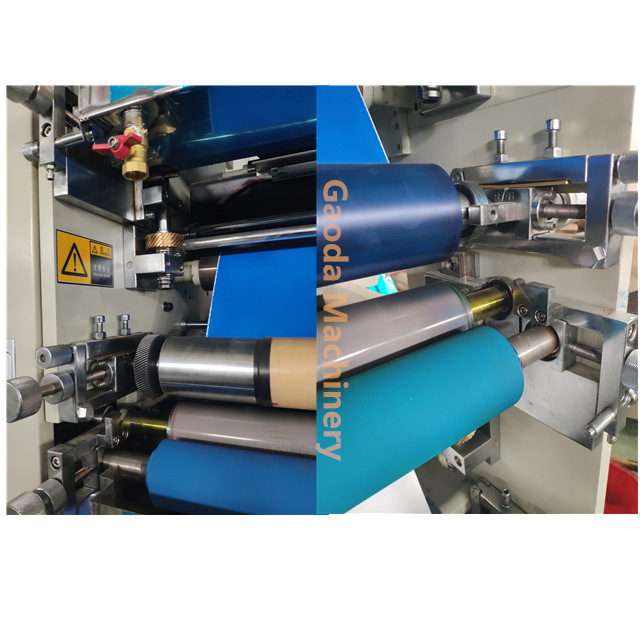

2）Printing unit:4 sets, 4 colors
The printing unit adopt 45 degrees of DP13 helical gear structure
Reserved image detection station
Anilox rolle, printing roller pressure pneumatic clutch
Ceramic Anilox roller 4pcs (as require)
Priting roller 8pcs (as require)
Manual transverse focusing alignment 4 set
Manual vertical focusing alignment 4 set
Single pole reverse scraping system 4set
Stainless steel cartridge 4set
Fast changing plate cylinder without any tools
Anilox roller rotation function: when machine stoped the anilox roller still running automatically, to prevent ink dry on anilox roller, avoid the anilox roller plug.
4 The printing gear:cp1/8
3）Heating and drying unit
Heating power :20KW
Fans:2.2KW*2PCS 1.5KW*2PCS

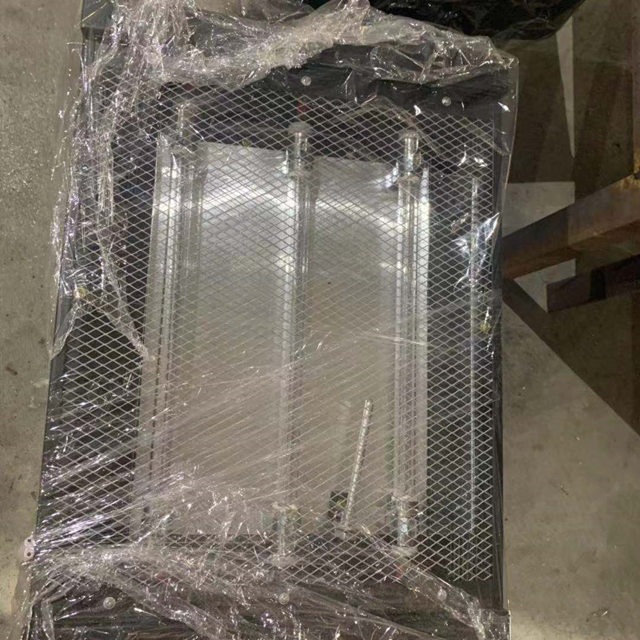

IR Dryer (one set)
Infrared heating drying printing unit,IR 4set
4）Rewinder unit
A set of winding for rewinding after printing, with one 3inch air swelling shaft can change 6inch air swelling shaft
Max rewinding diameter 1000mm

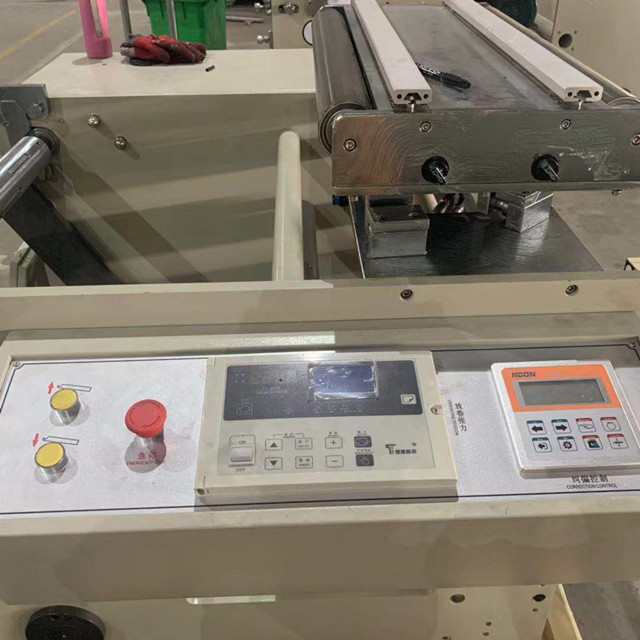

5）Web guiding unit
One set of Paper binding table
The paper guide roller adopts high hardness anodized
Adopt the ball screw electric actuators
Adopt rectifying photoelectric head to rectify induction
Electronic paper web guide traction device, there was a small offset paper web movement, the system can accurately continuously revised
Guiding precision:±0.12mm
