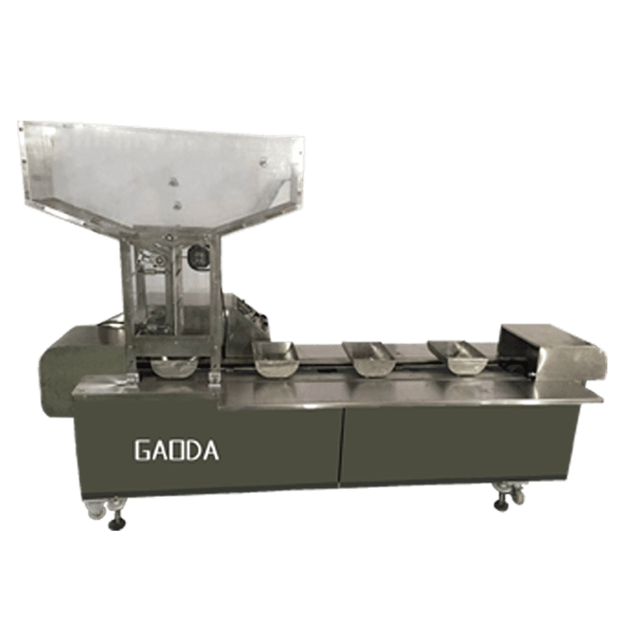

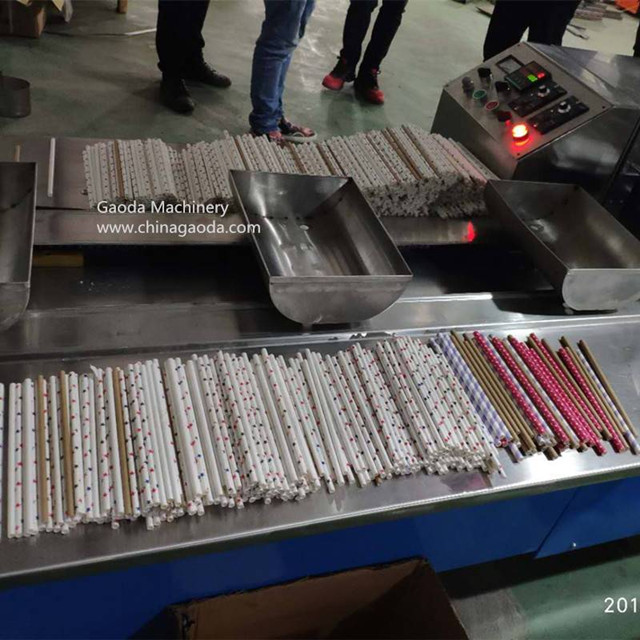

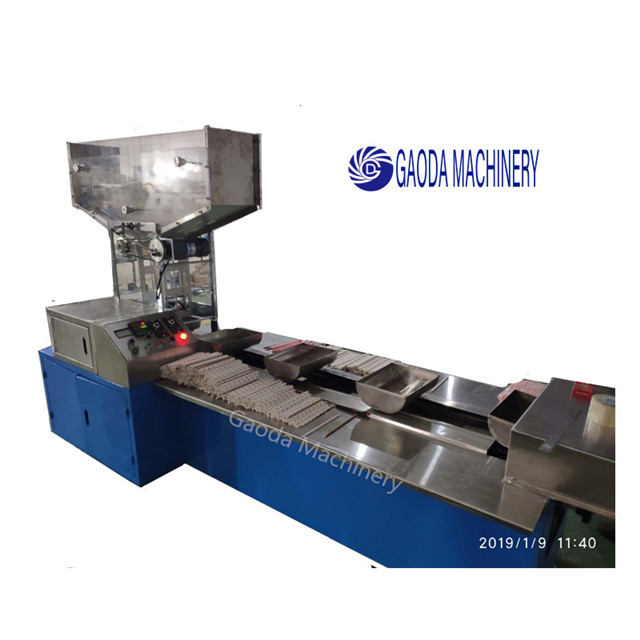

Paper straw counting machine is used for counting different quantity paper straws. The work could take out the straws then put into paper carton or paper box.
Paper straw counting machine is used for counting different quantity paper straws. The work could take out the straws then put into paper carton or paper box.
It's useful to save labor and imporve working efficiency.
NO.
Name
Configuration
Qty (pcs)
BRAND
1
counter
JM76
1
YUEQING BAILE
2
speed gauge
1
ANLI
3
converter
1.5KW
1
DEFU
4
gear deceleration motor
5IK90RGU-CF/5GU3KB
1
ZHONGDA LIDE
5
brake gear deceleration motor
6R200RGU-CMF/6GU25K
1
ZHONGDA LIDE
6
gear deceleration 3phase asynchronous motor
ZH200-15-S-G1-LD
1
ZHONGDA LIDE
7
motor speed controller
US-22/ 200W;220V
1
ZHONGDA LIDE
8
motor speed controller
US-22/ 90W;220V
1
ZHONGDA LIDE
9
slot U type photoelectric sensor
SU-KP2/12-24VDC
1
TAIWAN RUIKE
10
electromagnetic clutch braking
5KG
1
CHINA
11
main electrical equipment
Button、contactor、air switch
and so on
ALL
CHINT
12
bearing
16003/ 6904/ 6201
ALL
NSK
Ⅰ、Equipment
1.Body dimension: length×width×height 2300mm×1000mm×1700mm
2.Counting products: Valid width 270MM; Speed 1500pcs/min

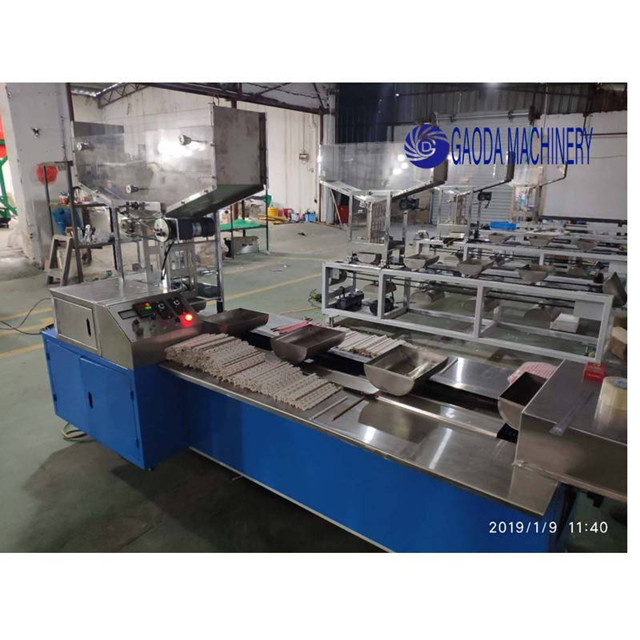

Ⅱ、Main construction
The machine consists of funnel tank、counting device、conveyor mechanism and electrical control and so on.
Ⅲ、Main configuration and specification for each mechanism
A. funnel tank
This mechanism is manual width adjustable,using independent gear reduction motor drive swing arm to carry out
straw adjustment and roller balance into the track, swing arm and roller speed can be adjusted arbitrarily
1.Stock specification: Max widtstrong70mm,the quantity 8000pcs
2.Motor control:speed control operation200-600RPM/min
3.Track adjustment : φ5 φ6 φ8 φ10。
B. Counting device
The device adopts 304 stainless steel high-precision disc molds, the molded shaft is adjusted and positioned and
the molded tooth size is easily replaced. The molded teeth are transferred by the frequency converter speed regulating
motor and electromagnetic clutch to brake and high-precision photocell sensor matching. The speed of counting can be
manually adjusted arbitrarily.
Machine video: https://www.youtube.com/watch?v=yHlIkpghknc&t=87s
If you have any enquiry about quotation or cooperation,please feel free to email us at gdxs03@chinagaoda.com or use the following enquiry form. Our sales representative will contact you within 24 hours. Thank you for your interest in our products.
